Details

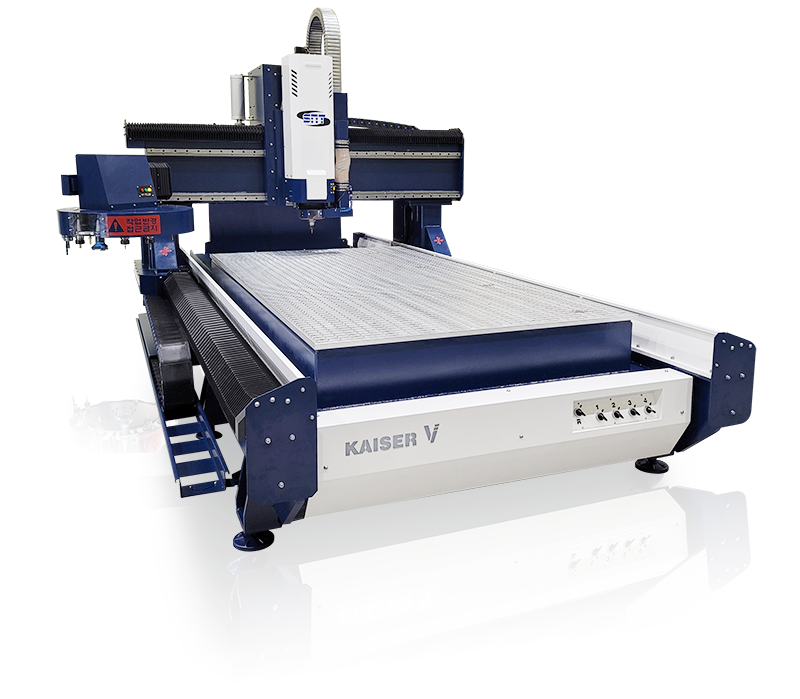

KAISER V

Working Stroke

2412	2500 x 1250 x 300 (mm)
3015	3000 x 1500 x 300 (mm)
3020	3000 x 2000 x 300 (mm)

Specification

CONTROLLER	3D고속가공용 CNC (Option FANUC-0iM_F)
SPINDLE	수냉식 16KW (18,000RPM) / Option Fanuc 12,000RPM
TOOLING	BT-40 / ISO-40
OPERATION	17인치 터치스크린 / Option Fanuc OP
UNIT	0.001mm
AXIS MOTOR	AC SERVO 모터 ( 10만등분 / 회전 )
CLAMPING	5분할 진공 테이블 ( VACUUM TABLE )
RAPID MOVE	50,000 mm / Min
ATC	TURRET TYPE 12개
REPEATABILITY	±0.02mm
DUST CATCHER	고효율 자동타입(OPTION)
POWER	380V / 4P
